EVO-DMLD demolder
Pneumatic release tooling matched to your reinforced mold and cavity layout.
See the demolderHome / Gummy molds / 10.5 mL Dome, 165 cavities

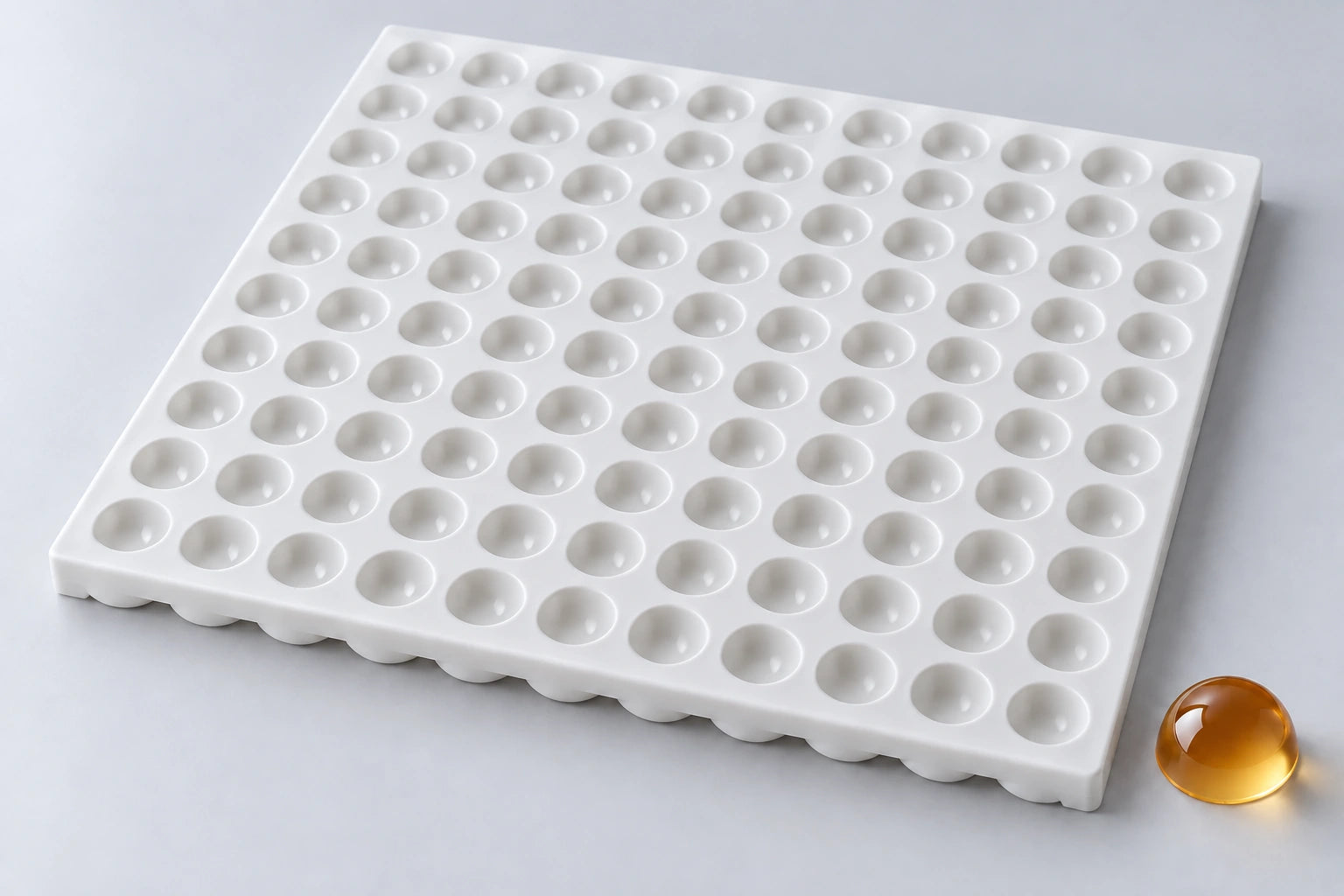

Illustrative studio visualization of this shape family. Cavity count, dimensions, symbols and construction follow your selected specification; final tooling is confirmed with your quote.
Made to order · Platinum silicone · EVO-S-062
10.5 mL Dome, 165 cavities
Dome cavity, 10.5 mL, 31.8 × 31.8 × 19 mm. 165 cavities per mold. Reference piece weight 13.65 g estimated.
- Cavity volume
- 10.5 mL
- Est. piece weight
- 13.65 g estimated
- Cavities
- 165
Request a quote This reference format requires an individual quote. Custom artwork, new tooling and nonstandard layouts are quoted separately. Final tooling and machine fit are confirmed before production. Payment by ACH or wire; shipping and applicable taxes are separate.
Cavity spacing differs from the 28.6 mm Evocan head pitch. We check the fit against your depositor before quoting.
THE CAVITY, IN DETAIL
Plan the shape.
Check the dimensions.
See the flat cavity layout, inspect a cavity and rotate the 3D view. Layouts use the supplied dimensions at one consistent scale. Catalog layouts are nominal references; missing or conflicting specifications are flagged below.
Specifications.
Piece weight is a reference at the recipe and conditioning noted. Your recipe, Brix and drying change the finished weight.
| Shape | Dome |
|---|---|
| Cavity volume | 10.5 mL |
| Cavity reference | 31.8 × 31.8 × 19 mm |
| Reference piece weight | 13.65 g estimated |
| Cavities per mold | 165 (11 × 15) |
| Total volume per mold | 1732.5 mL |
| Material | Platinum silicone, all-silicone or metal-reinforced |
| Sheet layout | 390 × 530 mm · 11 × 15 · 165 cavities |
| Cavity pitch | 34.8 × 34.4 mm |
| Construction | All-silicone, or metal-reinforced silicone for the EVO-DMLD demolder |
| Symbol artwork (optional) | Plain, universal THC symbol, or requested symbol artwork, confirmed before tooling |
| Compatible Evocan equipment | Tabletop depositor, EVO MDK, EVO30 subject to pitch check |
| Source | Evocan production design EVO-S-062 |
Pairs with.
Order the sheet with the equipment it runs on and we quote them together, checked for fit.
Stainless slip sheets
A firm surface under all-silicone sheets for moving loaded molds between stations.
See slip sheets

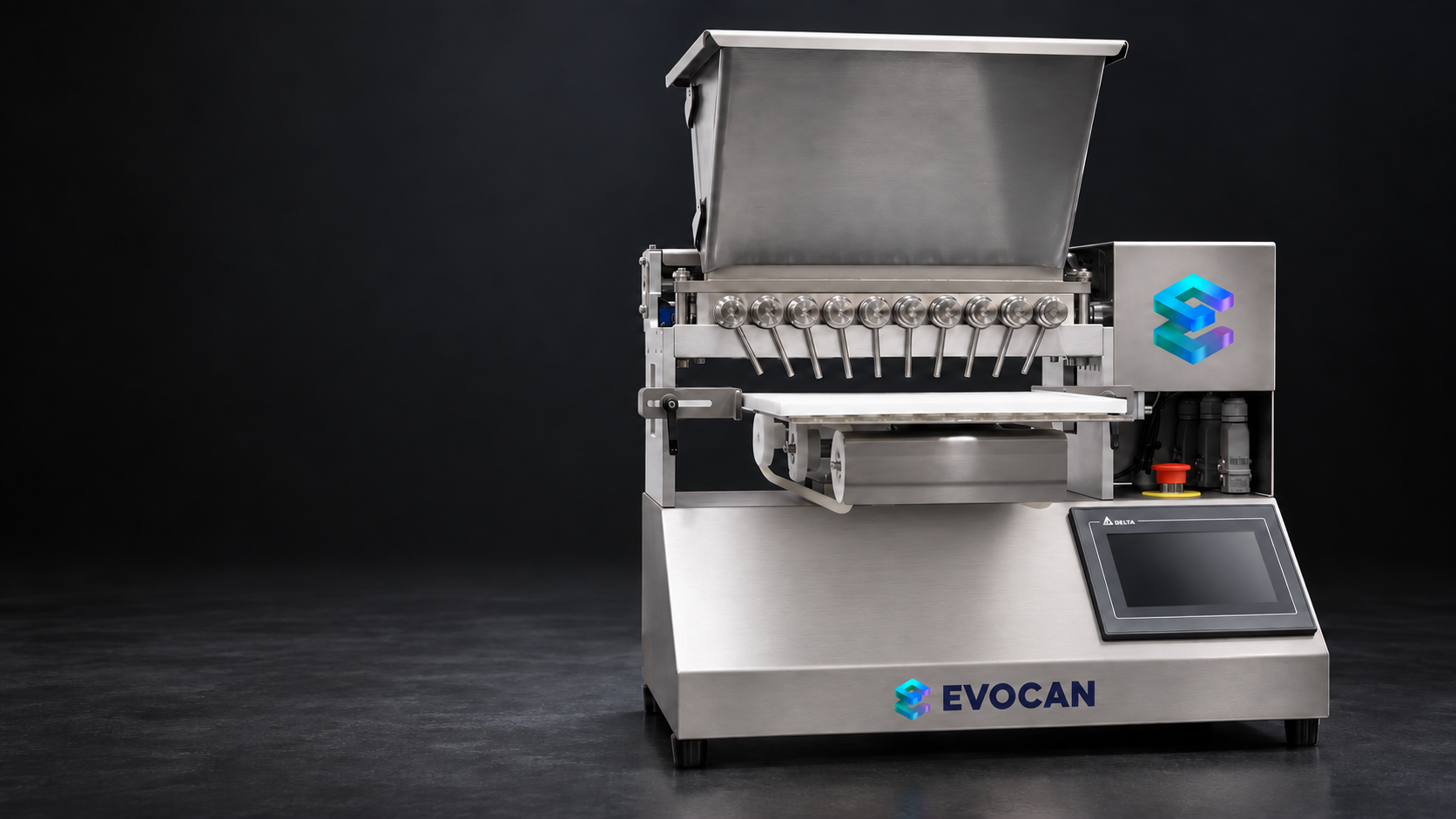

Tabletop depositor
Ten nozzles on 28.6 mm pitch, 2 to 10 g per deposit, up to 20 kg an hour.
See the tabletopMore round & dome molds.
All gummy molds
10.4 mL Dome
$22 per sheet · 13.52 g estimated · 24 × 24 × 28 mm
See the mold
LFG-001
14g · Ø27 × 13.5mm

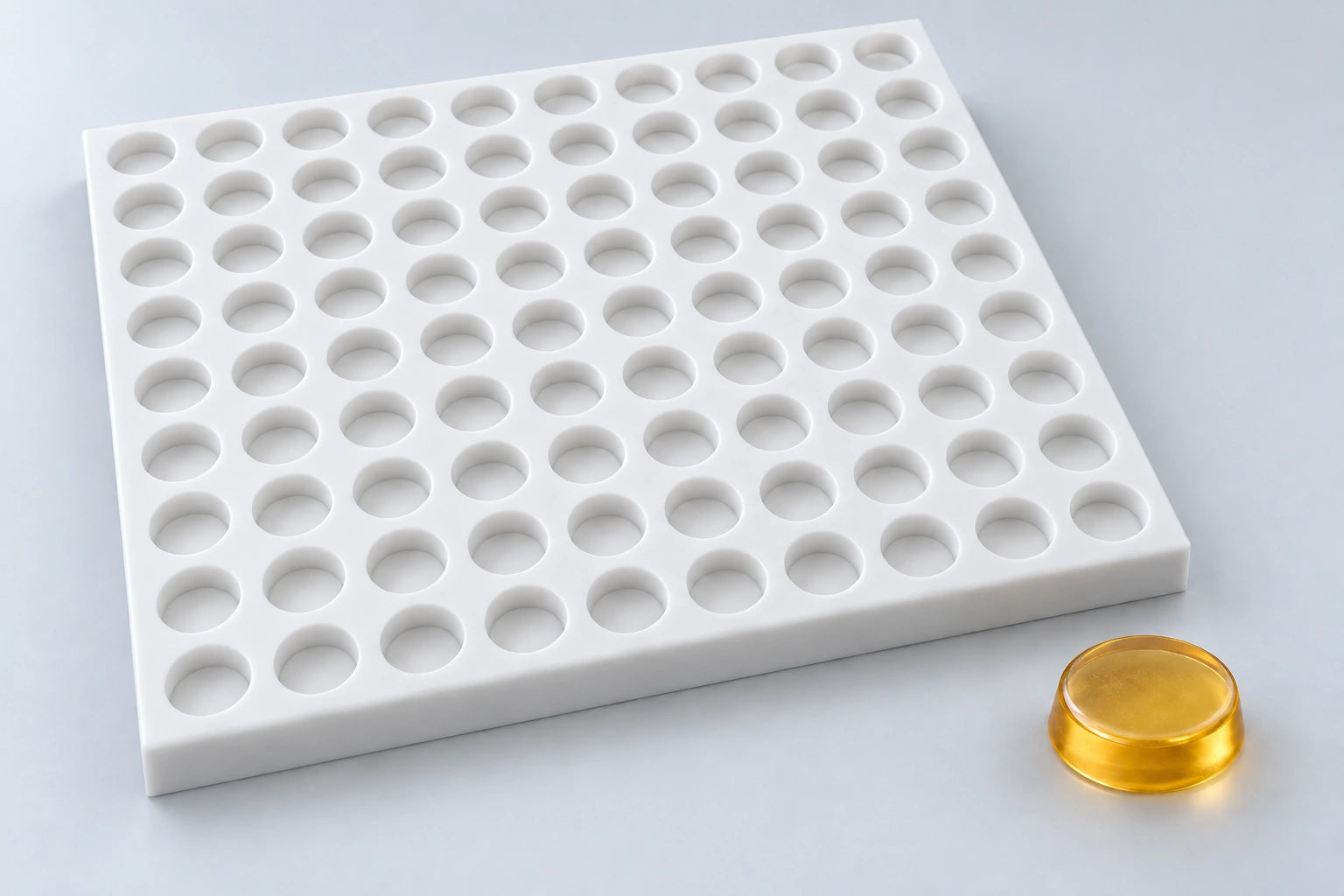

See the mold10 mL Circle
$150 per standard sheet · 13 g estimated · 33 × 33 × 12 mm
See the moldNeed a different weight?
This design can be re-cut to your target piece weight and cavity count. Send the numbers and we return a proof and a per-sheet price.

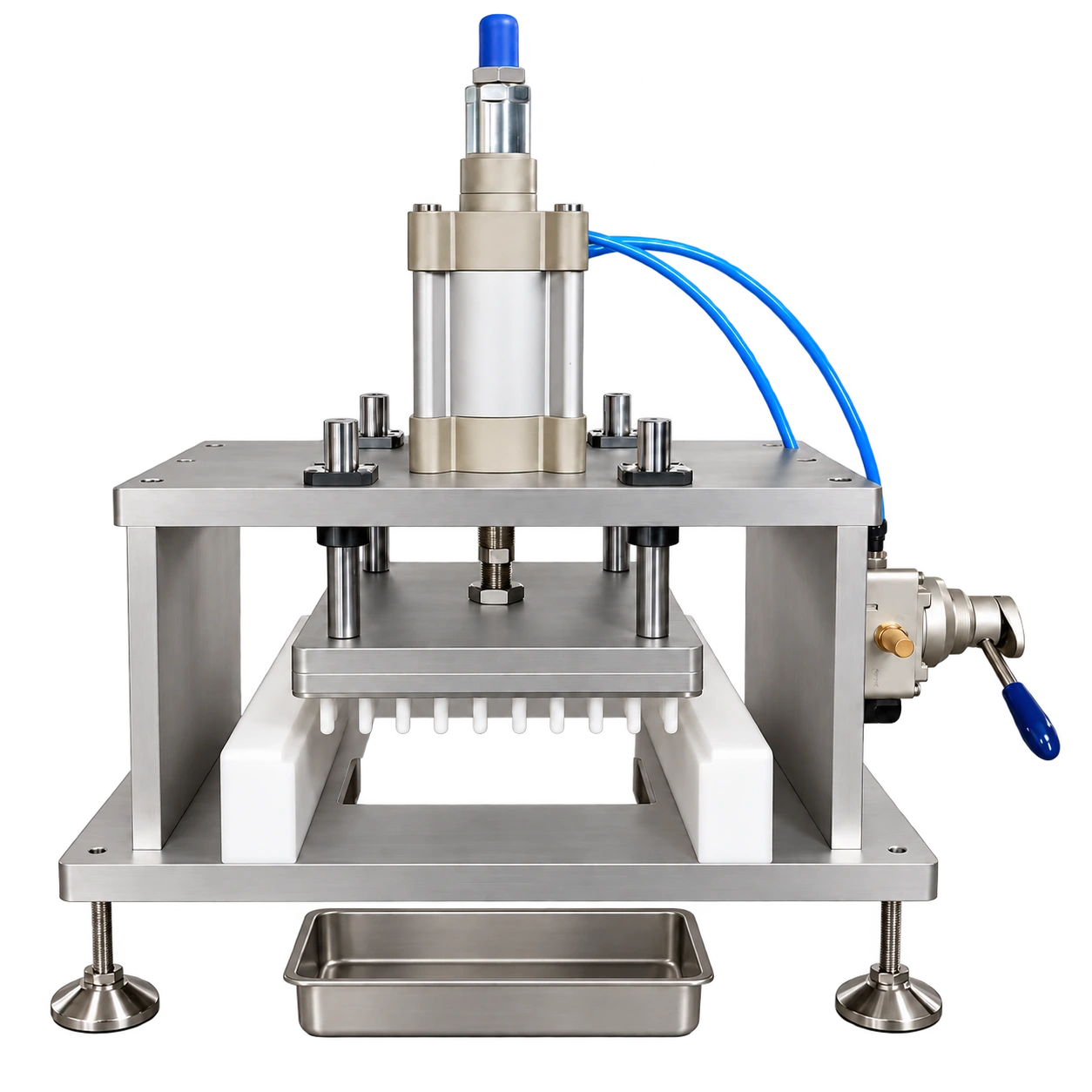

Reinforced sheets. Meet the demolder.
Pair the metal-reinforced version with the EVO-DMLD and plan release tooling for your cavity layout.
