See the demolderHome / Gummy molds / 0.125 mL Dome, 472 cavities
Illustrative studio visualization of this shape family. Cavity count, dimensions, symbols and construction follow your selected specification; final tooling is confirmed with your quote.
Made to order · Platinum silicone · EVO-S-003
0.125 mL Dome, 472 cavities
Dome cavity, 0.125 mL, 8 × 8 × 4 mm. 472 cavities per mold. Reference piece weight 0.1 g estimated.
- Cavity volume
- 0.125 mL
- Est. piece weight
- 0.1 g estimated
- Selected format cavities
- 472
$150 USD per standard all-silicone sheet in the listed reference format. The metal-reinforced version is $180 total per mold. Custom artwork, new tooling and nonstandard layouts are quoted separately. Final tooling and machine fit are confirmed before production. Payment by ACH or wire; shipping and applicable taxes are separate.
An Evocan sheet format on 28.6 mm pitch is available for the tabletop, EVO MDK and EVO30. We confirm nozzle alignment and the selected format with your quote.
THE CAVITY, IN DETAIL
Plan the shape.
Check the dimensions.
See the flat cavity layout, inspect a cavity and rotate the 3D view. Layouts use the supplied dimensions at one consistent scale. Catalog layouts are nominal references; missing or conflicting specifications are flagged below.
The catalog cavity count conflicts with its row and column counts. The cavity pattern is not shown.
Specifications.
Piece weight is a reference at the recipe and conditioning noted. Your recipe, Brix and drying change the finished weight.
| Shape | Dome |
|---|---|
| Cavity volume | 0.125 mL |
| Cavity reference | 8 × 8 × 4 mm |
| Reference piece weight | 0.1 g estimated |
| Reference pan cavities | 472 (20 × 11) |
| Reference pan total volume | 59 mL |
| Material | Platinum silicone, all-silicone or metal-reinforced |
| Sheet layout | 300 × 300 mm sheet · 10 × 10 · 100 cavities · 28.6 mm pitch (Evocan sheet) or 197 × 183 mm · 20 × 11 · 472 cavities |
| Cavity pitch | On request |
| Construction | All-silicone, or metal-reinforced silicone for the EVO-DMLD demolder |
| Symbol artwork (optional) | Plain, universal THC symbol, or requested symbol artwork, confirmed before tooling |
| Compatible Evocan equipment | Tabletop depositor, EVO MDK, EVO30, EVO-DMLD (reinforced version) |
| Source | Evocan production design EVO-S-003 |
Pairs with.
Order the sheet with the equipment it runs on and we quote them together, checked for fit.
Stainless slip sheets
A firm surface under all-silicone sheets for moving loaded molds between stations.
See slip sheets
Tabletop depositor
Ten nozzles on 28.6 mm pitch, 2 to 10 g per deposit, up to 20 kg an hour.
See the tabletopMore round & dome molds.
All gummy molds0.1 mL Plain Dome
Price by quote · 0.1 g estimated · 7 × 7 × 4 mm
See the mold
0.1 mL Geometric Dome
$150 per standard sheet · 0.1 g estimated · On request
See the mold

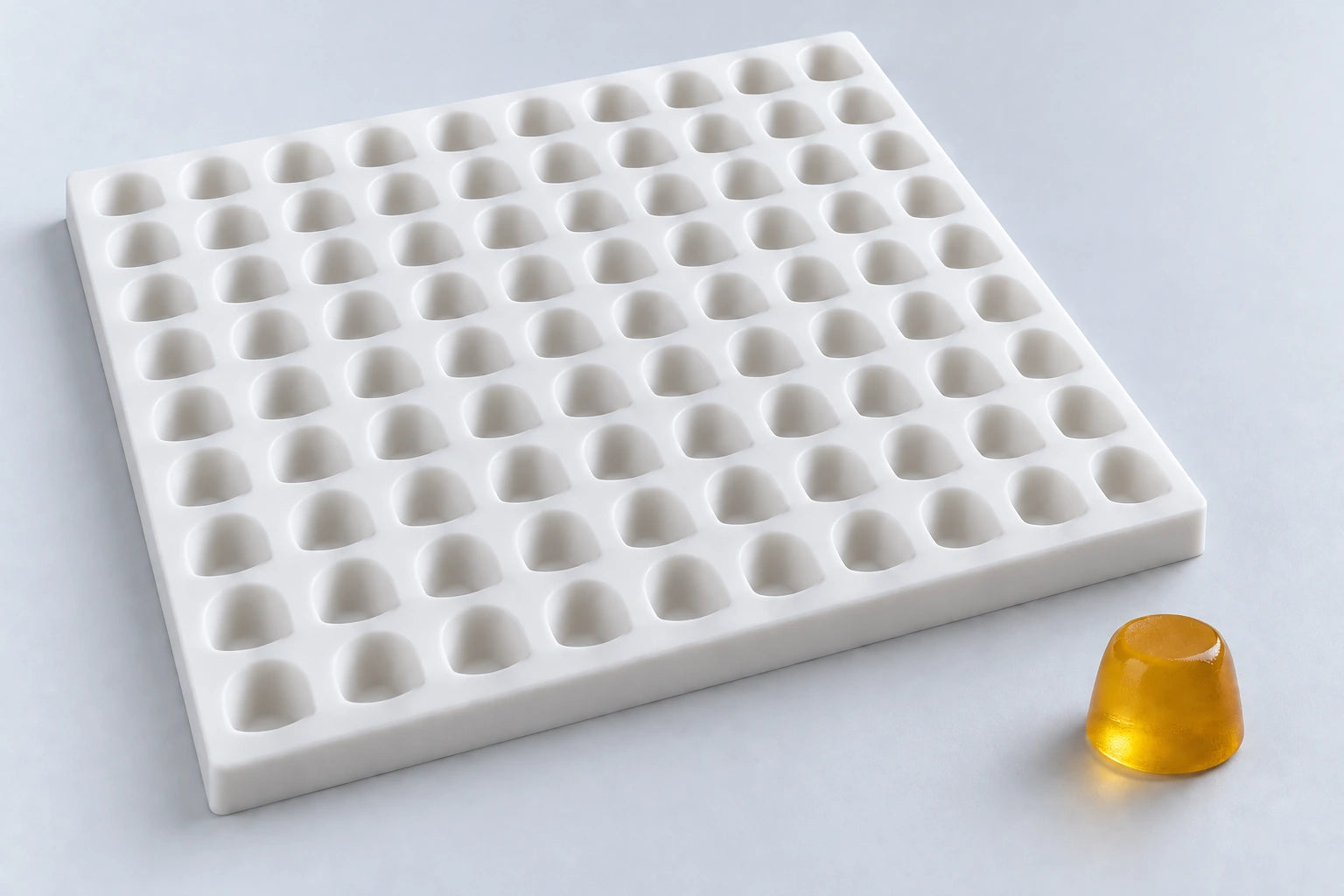

Gumdrop 18.4 mm
$150 per standard sheet · Confirmed with quote · 18.4 × 18.4 × 17.2 mm
See the moldNeed a different weight?
This design can be re-cut to your target piece weight and cavity count. Send the numbers and we return a proof and a per-sheet price.
Reinforced sheets. Meet the demolder.
Pair the metal-reinforced version with the EVO-DMLD and plan release tooling for your cavity layout.
